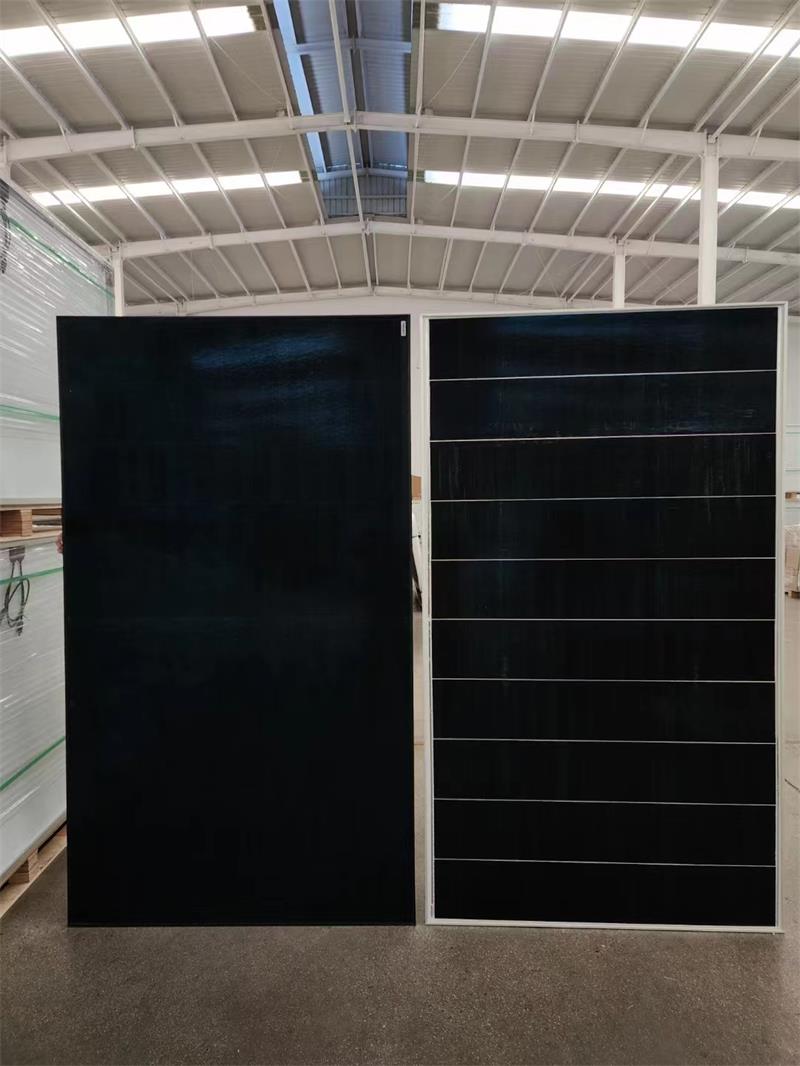

575-600M HALF-CELL Monocrystalline Solar Panels PERC PV Module

Product Description

575-600W 21.46% 0.55%

POWER RANGE MAXIMUM EFFICIENCY YEARLY DEGRADATION

12 YEARS PRODUCT WARRANTY 25 YEARS OUTPUT GUARANTEE

Factors to Consider Before Installing Roof-Mounted Solar Panels

Before installing roof-mounted solar panels, there are several factors to consider:

Roof Suitability: Assess the condition and orientation of your roof to determine its suitability for solar panel installation. Factors such as roof age, structural integrity, shading, and roof material can impact the efficiency and effectiveness of the solar panels.

Permitting and Regulations: Familiarize yourself with local regulations and permitting requirements for installing solar panels on your roof. This ensures compliance with building codes and streamlines the installation process.

Financial Considerations: Evaluate the financial aspects of installing solar panels, including the initial investment, available incentives, and potential return on investment.

Energy Consumption: Assess your energy consumption to determine the appropriate size and number of solar panels needed to meet your electricity needs. Consider factors such as the number of occupants, appliances, and energy-intensive activities to accurately estimate your energy requirements.

By thoroughly considering these factors, you can make an informed decision about installing solar panels on your roof.

ELECTRICAL CHARACTERISTICS 丨 STC*

Nominal Power Watt Pmax(W)*	575	580	585	590	595	600
Power Output Tolerance Pmax(%)	0~+3	0~+3	0~+3	0~+3	0~+3	0~+3
Maximum Power Voltage Vmp(V)	44.40	44.60	44.80	45.00	45.20	45.40
Maximum Power Current Imp(A)	12.96	13.01	13.07	13.12	13.17	13.22
Open Circuit Voltage Voc(V)	53.70	53.90	54.10	54.30	54.50	54.70
Short Circuit Current Isc(A)	13.68	13.74	13.80	13.86	13.92	13.98
Module Eﬃciency (%)	20.57	20.75	20.93	21.11	21.29	21.46

MECHANICAL DATA

Solar cells	Mono PERC
Cells orientation	156（6×26）
Module dimension	2465×1134×40 mm (With Frame)
Weight	30.5±1.0kg
Glass	3.2mm, High Transmission, AR Coated Tempered Glass
Junction box	IP 68，3 diodes
Cables	4 mm² ,350 mm (With Connectors)
Connectors*	MC4-compatible

ELECTRICAL CHARACTERISTICS 丨 NMOT

Maximum Power Pmax(Wp)	430.20	433.80	437.60	441.20	444.90	448.50
Maximum Power Voltage Vmpp(V)	41.40	41.60	41.80	41.90	42.10	42.20
Maximum Power Current Impp(A)	10.39	10.43	10.48	10.53	10.57	10.62
Open Circuit Voltage Voc(V)	50.20	50.40	50.60	50.70	50.90	51.10
Short Circuit Current Isc(A)	11.05	11.10	11.14	11.19	11.24	11.29

TEMPERATURE RATINGS WORKING CONDITIONS

NMOT	44℃ ±2℃	Maximum system voltage	1500 V DC
Temperature coeﬃcient of Pmax	-0.35%/℃	Operating temperature	-40℃~+85℃
Temperature coeﬃcient of Voc	-0.29%/℃	Maximum series fuse	25 A
Temperature coeﬃcient of Isc	0.05%/℃	Front Side Maximum Static Loading Up to 5400 Pa Rear Side Maximum Static Loading Up to 2400 Pa
